A107 DRIVEFLEX® VFD XHHW-2 with 1 Control Pair

LUTZE Driveflex A107
Application
  • Dual-shielded motor supply cable to connect power to 3-phase motors, VFDs and servo drives
  • Cable design for harsh industrial environments and operating conditions with high noise levels
  • Thermoset XLPE insulation offering superior overload and short-circuit temperature
  • Type XHHW-2 insulation offering smaller ODs for general VFD applications
  • Compliant with NFPA 79 requirements
  • TC-ER-JP for use with cable trays without conduit, which can reduce installation costs in industrial environments
  • WTTC – wind turbine tray cable rating for use in wind power generation
  • Dry, damp or wet conditions
Characteristics
  • Flexible XLPE conductor design
  • Reduced cable ODs
  • High insulation resistance
  • Low capacitance cable
  • Effective dual layer shield for EMC compliance
  • Oil resistant jacket designed for easy stripping
  • Non-wicking fillers
  • Ecolab certified resistance to common cleaning agents and chemicals used in food and beverage washdown procedures
  • Crush impact resistant
  • Gas/vapor tight sheath per UL 1277
  • Sunlight resistant
  • Flame retardant
  • Direct burial
  • Talc and silicone free
Part number Description No. of conductors incl. ground OD - Ø ca. mm OD - Ø ca. inches Weight Lbs/Mft Copper Lbs/Mft
A1071804 AWG 18 (19/30)
1 TSP AWG 18 (19/30)
4 + 1 pair
13.3 0.525 156 66
A1071604 AWG 16 (26/30)
1 TSP AWG 18 (19/30)
4 + 1 pair
13.9 0.548 179 79
A1071404 AWG 14 (41/30)
1 TSP AWG 16 (26/30)
4 + 1 pair
15.2 0.600 234 112
A1071404R AWG 14 (41/30)
1 TSP AWG 18 (19/30)
4 +1 pair
13.0 0.510 184 92
A1071204 AWG 12 (65/30)
1 TSP AWG 16 (26/30)
4 + 1 pair
16.5 0.650 285 154
A1071204R AWG 12 (65/30)
1 TSP AWG 18 (19/30)
4 +1 pair
14.9 0.587 234 128
A1071004 AWG 10 (105/30)
1 TSP AWG 14 (41/30)
4 + 1 pair
18.8 0.740 378 216
A1070804 AWG 8 (168/30)
1 TSP AWG 14 (41/30)
4 + 1 pair
24.0 0.945 605 314
Voltage:

600V 90C TC-ER-JP


1000V 90C Flexible VFD Servo Cable


1000V 90C WTTC


1000V 105C AWM

Temperature range: -40°C - +105°C static
Bending radius min: 6 x cable OD
Conductor marking: Black with white numbers and one green/yellow ground
Oil resistance: Oil Res II
Approvals:

UL Type Flexible Motor Supply Cable,


Flexible VFD Servo Cable, TC-ER-JP,


WTTC, DP-1


Meets NEC 336, 392 Class I & II Div. 2 and Class I Zone 2 per NEC 501, 502, 505


AWM 20886


c(UL) TC, CIC FT4


UL 1277


RoHS, REACH, TSCA

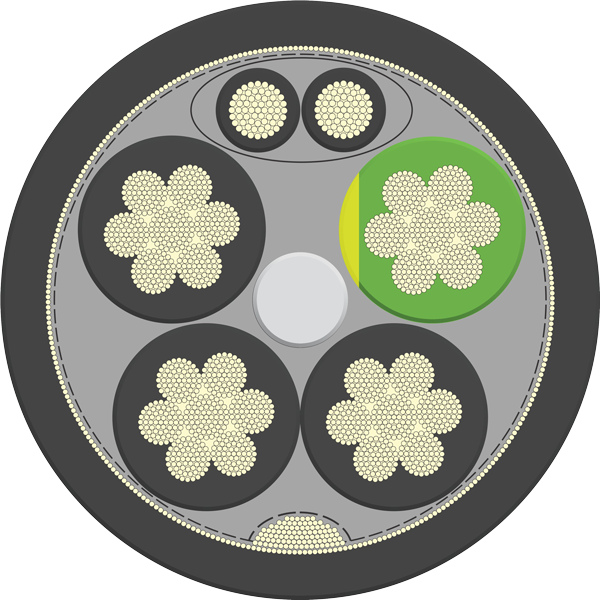

Construction:

AWG conductor


Class K flexible fine wire stranded tinned copper conductors for improved electrical characteristics and reduced oxidation


Thermoset XLPE insulation type XHHW-2, Wet/Dry *A1071404R: XHHW-2, THHN (control pair)


Shielded with foil tape, tinned copper braid with ≥80% optical coverage, and drain wire, one size smaller than circuit size


Oil resistant PVC jacket


Black jacket similar to RAL 9005



Specifications are subject to change without prior notice



Capacitance Impedance
Part number Mutual (pF/ft) Ground (pF/ft) Mutual (Ohms) Ground (Ohms)
A1071804 16.5 30.7 84.3 48.7
A1071604 18.7 34.6 63.5 42.3
A1071404 22.7 39.5 56.3 33
A1071404R 22.7 39.5 56.3 33
A1071204 25.1 43 53.7 31.9
A1071204R 25.1 43 53.7 31.9
A1071004 27.4 46.7 46.2 27.3
A1070804 27.5 49.5 49.1 24.7
