A110 DRIVEFLEX® HYDRO XLPE PVC, Unshielded

LUTZE Driveflex A110
Application
  • Motor cable designed for harsh down-well environments and wet operating conditions
  • Motor supply cable to connect power to 3-phase motors, VFDs and servo drives
  • Thermoset XLPE insulation offering superior overload and short-circuit temperature
  • Type XHHW-2 insulation offering smaller ODs for submersible pump and special VFD applications
  • Compliant with NFPA 79 requirements
  • TC-ER-JP for use with cable trays without conduit, which can reduce installation costs in industrial environments
  • WTTC – wind turbine tray cable rating for use in wind power generation
  • Dry, damp or wet conditions
Characteristics
  • Flexible XLPE conductor design
  • Water blocking separator tape for increased water ingress protection
  • Reduced cable ODs
  • High insulation resistance
  • Low capacitance cable
  • Oil resistant jacket designed for easy stripping
  • Non-wicking fillers
  • Crush impact resistant
  • Gas/vapor-tight sheath per UL 1277
  • Sunlight resistant
  • Flame retardant
  • Direct burial
Part number Description No. of conductors incl. ground OD - Ø ca. mm OD - Ø ca. inches Weight Lbs/Mft Copper Lbs/Mft
A1101404 AWG14/04C (41/30) 11.4 0.450 118 51
A1101204 AWG12/04C (65/30) 12.7 0.500 162 84
A1101004 AWG10/04C (105/30) 15.6 0.615 254 130
A1100804 AWG8/04C (168/30) 20.2 0.795 407 214
A1100604 AWG6/04C (266/30) 23.4 0.920 600 339
A1100404 AWG4/04C (420/30) 27.0 1.060 842 527
A1100204 AWG2/04C (672/30) 31.5 1.240 1,263 874
A1100104 AWG1/04C (840/30) 33.1 1.304 1,505 1,068
A1101/004 1/0/04C (1064/30) 35.6 1.400 1,835 1,363
A1102/004 2/0/04C (1344/30) 38.6 1.520 2,228 1,708
A1103/004 3/0/04C (1664/30) 41.8 1.644 2,651 2,064
A1104/004 4/0/04C (2052/30) 47.9 1.887 3,378 2,606
Voltage: 600V 90C TC-ER
1000V 90C Flexible VFD Servo Cable
1000V 90C WTTC
1000V 105C AWM (≤ AWG2)
Temperature range: -40°C - +90/105°C static
Bending radius min: 4 x cable OD
Conductor marking: Black with white numbers and one green/yellow ground
Oil resistance: Oil Res II
Approvals: UL Type Flexible Motor Supply, Flexible VFD Servo Cable,
TC-ER, WTTC,
DP-1 (≤ AWG2)
Meets NEC 336, 392
Class I & II, Div. 2 and Class I Zone 2 per NEC 501, 502, 505
AWM 20886 (≤ AWG2) Submersible Pump
c(UL) TC, CIC FT4
UL 1277
RoHS, REACH, TSCA

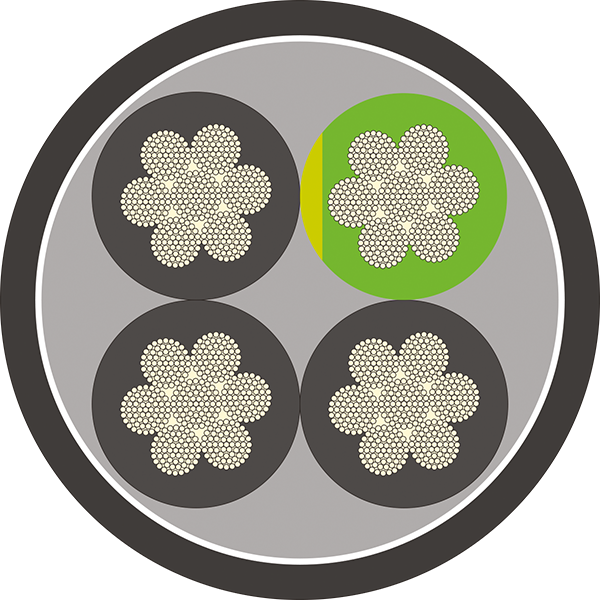

Construction: AWG conductor
Flexible fine wire stranded tinned copper conductors for improved electrical characteristics and reduced oxidation
Thermoset XLPE insulation type XHHW-2, Wet/Dry
Water blocking separator tape
Oil resistant PVC jacket
Black jacket similar to RAL 9005
