A216 DRIVEFLEX® VFD RHW-2

LUTZE Driveflex A216
Application
  • Dual-shielded motor supply cable to connect power to 3-phase motros, VFDs and servo drives
  • Cable design for harsh industrial environments and operating conditions with high noise levels
  • Thermoset XLPE insulation offering superior overload and short-circuit temperature
  • Increased wall thickness insulation type RHW-2, offering lower capacitance and higher impedance making it ideal for applications with high voltage spikes and long cable runs
  • Compliant with NFPA 79 requirements
  • TC-ER-JP for use with cable trays without conduit, which can reduce installation costs in industrial environments
  • WTTC - wind turbine tray cable rating for use in wind power generation
  • Dry, damp or wet conditions
Characteristics
  • Flexible XLPE conductor design
  • High insulation resistance
  • Low capacitance cable
  • Effective dual layer shield for EMC compliance
  • Oil resistant jacket designed for easy stripping
  • Non-wicking fillers
  • Ecolab certified resistance to common cleaning agents and chemicals in used in food and beverage washdown procedures
  • Crush impact resistant
  • Gas/vapor-tight sheath per UL 1277
  • Sunlight resistant
  • Flame retardant
  • Direct burial
  • Talc and silicone free
Part number Description No. of conductors incl. ground OD - Ø ca. mm OD - Ø ca. inches Weight Lbs/Mft Copper Lbs/Mft
A2161604 AWG 16 (26/30)
4
12.4 0.490 149 57
A2161404 AWG 14 (41/30)
4
14.2 0.560 200 80
A2161204 AWG 12 (65/30)
4
15.6 0.615 262 128
A2161004 AWG 10 (105/30)
4
17.8 0.700 359 186
A2160804 AWG 8 (168/30)
4
23.5 0.925 603 295
A2160604 AWG 6 (266/30)
4
25.7 1.010 763 425
A2160404 AWG 4 (413/30)
4
29.3 1.155 1,126 632
A2160204 AWG 2 (665/30)
4
34.2 1.345 1,559 997
Voltage:

600V 90C TC-ER-JP


1000V 90C Flexible VFD Servo Cable


1000V 90C WTTC


1000V 105C AWM

Temperature range: -40°C - +105°C static
Bending radius min: 6 x cable OD
Conductor marking: Black with white numbers and one green/yellow ground
Approvals:

UL Type Flexible Motor Supply,


Flexible VFD Servo Cable,


TC-ER-JP, WTTC, DP-1


Meets NEC 336, 392 Class I & II Div. 2 and Class I Zone 2 per NEC 501, 502, 505


AWM 20886


Submersible Pump (≥ AWG14)


c(UL) TC, CIC FT4


UL 1277


P-07-KA130021-MSHA


RoHS, REACH, TSCA

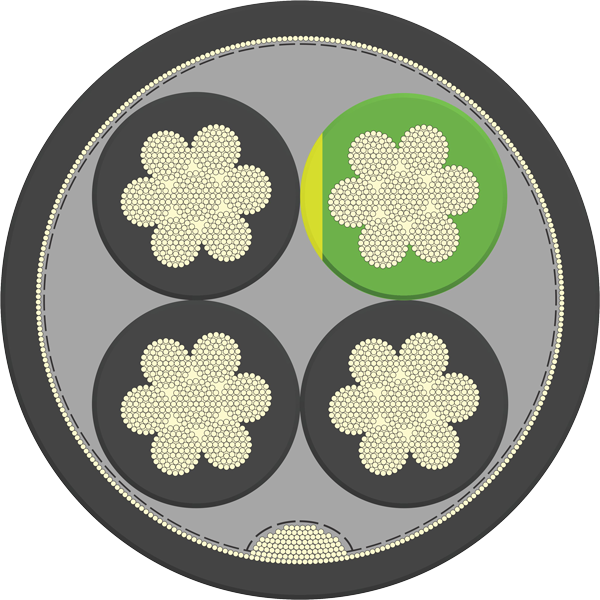

Construction:

AWG conductor


Class K flexible fine wire stranded tinned copper conductors for improved electrical characteristics and reduced oxidation


Thermoset XLPE insulation type RHW-2, Wet/Dry


Shielded with foil tape, tinned copper braid with 80% optical coverage, and drain wire


Oil resistant PVC jacket


Black jacket similar to RAL 9005

Oil resistance:

Oil Res II




Specifications subject to change without prior notice

Capacitance Impedance
Part number Mutual (pF/ft) Ground (pF/ft) Mutual (Ohms) Ground (Ohms)
A2161604 18.5 34.3 81.9 44.4
A2161404 21.5 39.4 75 33.3
A2161204 22.8 41.15 73.5 38.2
A2161004 21.7 36.9 54.2 30.6
A2160804 24.5 40.9 64.2 36.5
A2160604 29 48 61.5 34.7
A2160404 32 52 56 31.6
A2160204 35.5 57 51 28.8
