A217 DRIVEFLEX® VFD RHW-2 with 1 Control Pair

LUTZE Driveflex A217
Application
  • Dual-shielded motor supply cable to connect power to 3-phase motors, VFDs and servo drives
  • Cable design for harsh industrial environments and operating conditions with high noise levels
  • Thermoset XLPE insulation offering superior overload and shirt-circuit temperature
  • Increased wall thickness insulation type RHW-2, offering lower capacitance and higher impedance making it ideal for applications with high voltage spikes and long cable runs
  • Compliant with NFPA 79 requirements
  • TC-ER-JP for use with cable trays without conduit, which can reduce installation costs in industrial environments
  • WTTC – wind turbine tray cable rating for use in wind power generation
  • Dry, damp or wet conditions
Characteristics
  • Flexible XLPE conductor design
  • High insulation resistance
  • Low capacitance cable
  • Effective dual layer shield for EMC compliance
  • Oil resistant jacket designed for easy stripping
  • Non-wicking fillers
  • Crush impact resistant
  • Gas/vapor-tight sheath per UL 1277
  • Sunlight resistant
  • Flame retardant
  • Direct burial
  • Talc and silicone free
Part number Description No. of conductors incl. ground OD - Ø ca. mm OD - Ø ca. inches Weight Lbs/Mft Copper Lbs/Mft
A2171604 AWG 16 (26/30)
1 TSP AWG18 (19/30)
4 + 1 pair
15.7 0.620 228 90
A2171404 AWG 14 (41/30)
1 TSP AWG16 (26/30)
4 + 1 pair
16.8 0.660 265 117
A2171204 AWG 12 (65/30)
1 TSP AWG16 (26/30)
4 + 1 pair
18.3 0.720 335 160
A2171004 AWG 10 (105/30)
1 TSP AWG14 (41/30)
4 + 1 pair
20.6 0.810 420 218
A2170804 AWG 8 (168/30)
1 TSP AWG14 (41/30)
4 + 1 pair
26.0 1.025 713 321
A2170604 AWG 6 (266/30)
1 TSP AWG14 (41/30)
4 + 1 pair
27.8 1.095 873 453
A2170404 AWG 4 (413/30)
1 TSP AWG14 (41/30)
4 + 1 pair
31.0 1.220 1,143 650
A2170204 AWG 2 (665/30)
1 TSP AWG14 (41/30)
4 + 1 pair
35.3 1.388 1,574 1,010
Voltage: 600V 90C TC-ER-JP
1000V 90C Flexible VFD Servo Cable
1000V 105C AWM,
1000V WTTC
Temperature range: -40°C - +105°C static
Bending radius min: 6 x cable OD
Conductor marking: Black with white numbers and one green/yellow ground
Approvals: UL Type Flexible Motor Supply Cable,
Flexible VFD Servo Cable,
TC-ER-JP, WTTC, DP-1
Meets NEC 336, 392 Class I & II Div. 2 and Class I Zone 2 per NEC 501, 502, 505
AWM 20886
Submersible Pump (≥AWG14)
c(UL) TC, CIC FT4
UL 1277
P-07-KA130021-MSHA
RoHS, REACH

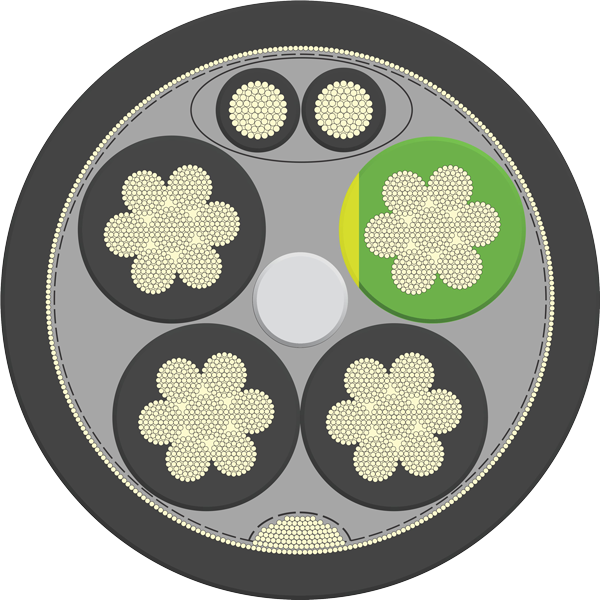

Construction: AWG conductor
Flexible fine wire stranded tinned copper conductors for improved electrical characteristics and reduced oxidation
Thermoset XLPE insulation, Wet/Dry (4C RHW-2, 1 Pair XHHW-2)
Shielded with foil tape, tinned copper braid with 80% optical coverage, and drain wire
Oil resistant PVC jacket
Black jacket similar to RAL 9005
Oil resistance: Oil Res II
Capacitance Impedance
Part number Mutual (pF/ft) Ground (pF/ft) Mutual (Ohms) Ground (Ohms)
A2171604 12.6 28.3 86.6 44.2
A2171404 16.8 32.3 77.0 47.0
A2171204 18.6 36.8 73.6 35.2
A2171004 19.2 35.1 63.4 31.3
A2170804 21.2 41.0 68.8 35.6
A2170604 28.4 50.6 64.3 37.2
A2170404 31.3 49.3 53.5 29.5
A2170204 34.7 54.0 48.8 26.8
